ElectroMage

Slim Case for Pre-Soldered Pixelblaze

Regular price $9.00 USD
Regular price Sale price $9.00 USD
Configuration

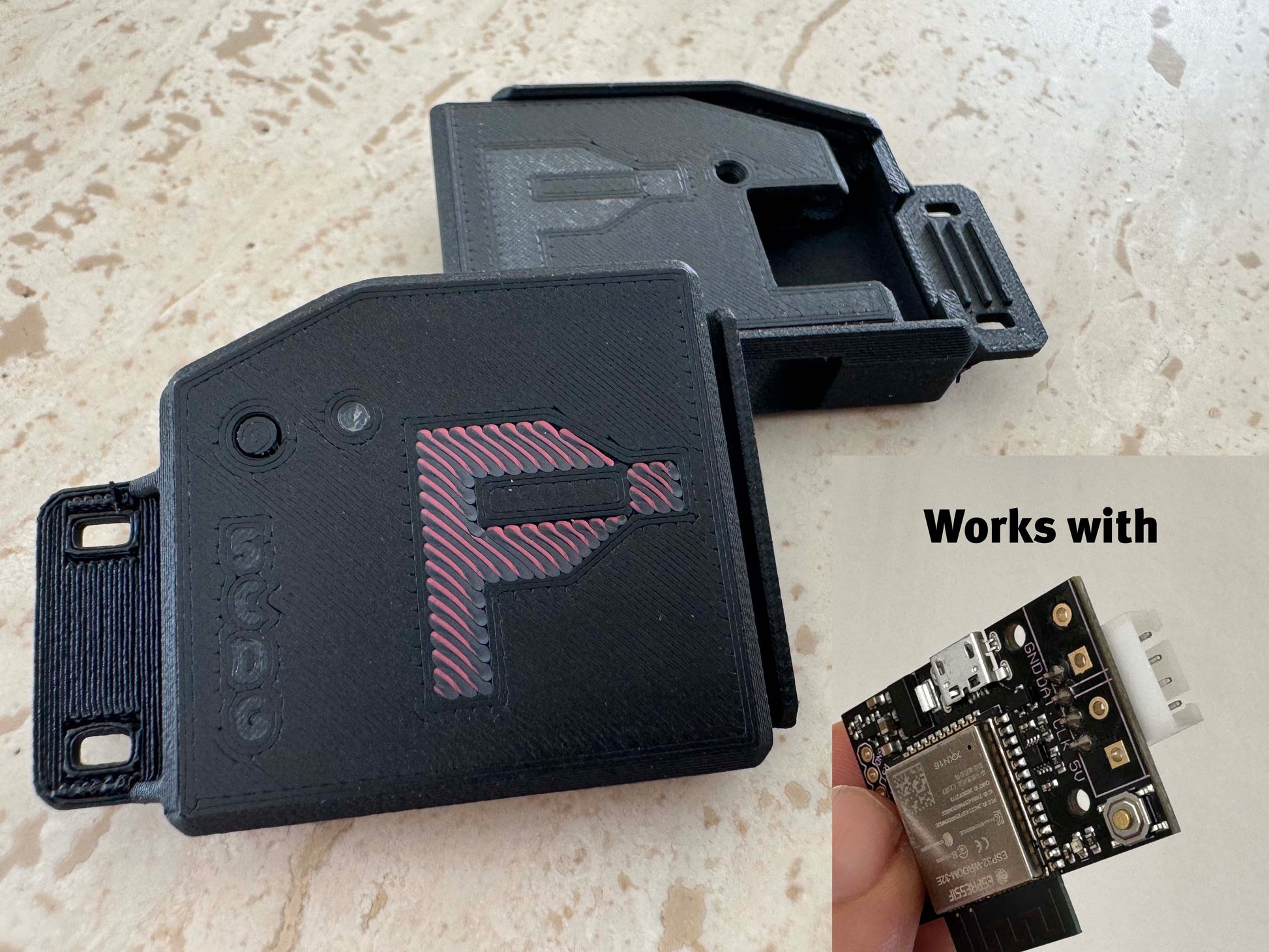

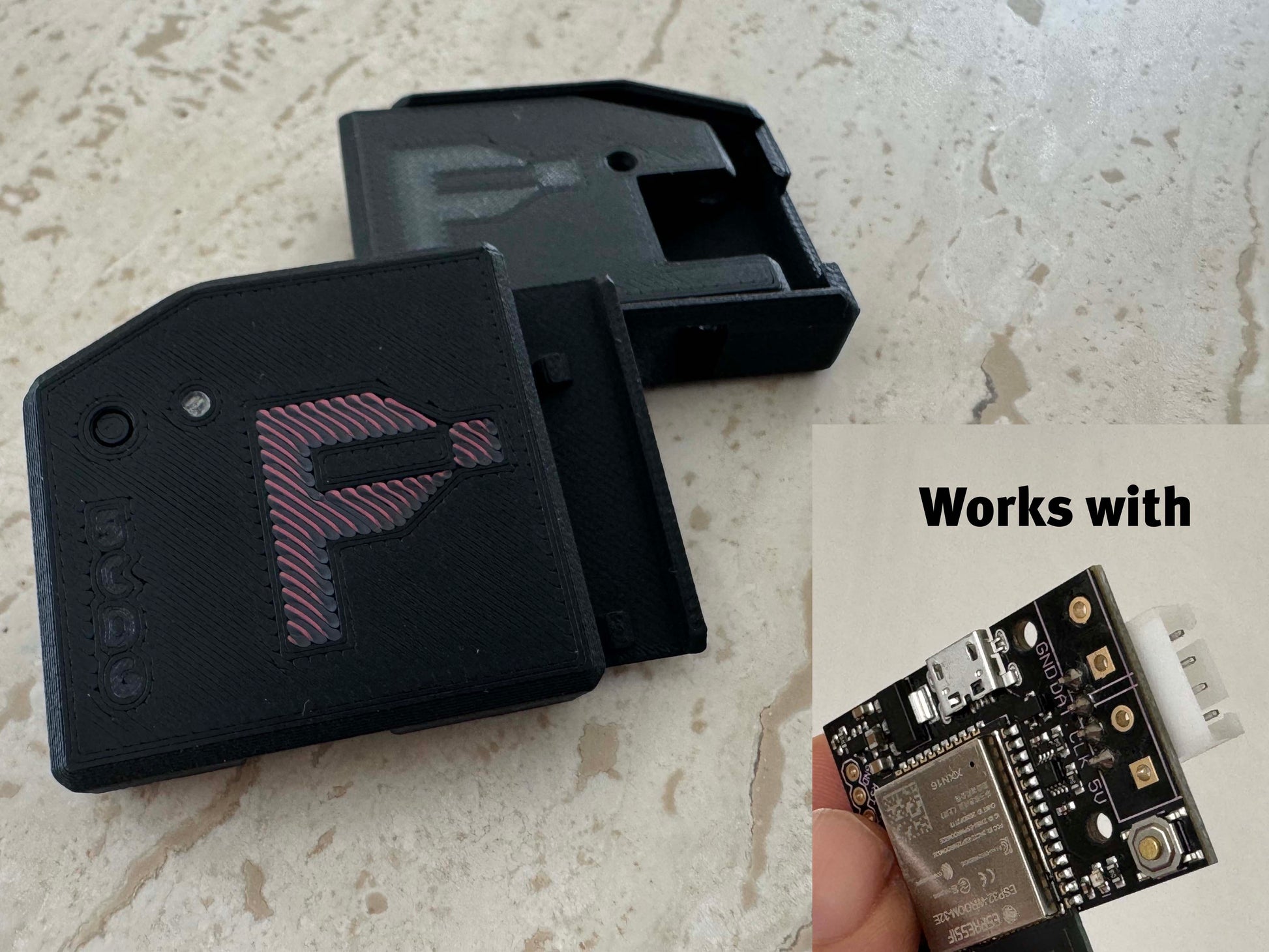

The Slim Case for Pre-Soldered Pixelblaze is similar to our flexible Slim Case, but is optimized for the Pre-Soldered Pixelblaze.

Unlike the other slim case, this one doesn't have any snap-outs, so choose this case if you've got a pre-soldered Pixelblaze (or soldered your own JST-XH connector to the bottom) and you want your USB power port always open.

The pre-soldered Pixelblaze can be connected to any LEDs with our adapters





A Pixelblaze case protects your controller. It lets you mount it securely in a variety of ways or makes it comfortable to carry in a pocket.

These cases are compatible with Pixelblaze Standard (v2 or v3, not the Pico).

Here's a comparison of the Pixelblaze case options:

  Slim Case for Pre-Soldered (this listing) Slim Case PB + Sensor Board Case
Holds Pixelblaze Pixelblaze Pixelblaze + a sensor board soldered underneath
Output: Screw terminal
✅ snap-out ✅ hole
Output: JST-XH on PCB top
✅ snap-out ✅ hole
Output: JST-XH on PCB bottom ✅ hole ✅ snap-out
Output: Wires directly soldered
Output strain relief shelf Optional Optional ✅, can cut off
Mounting hole tabs

✅, can cut off

Compatible with the mounting cradle
  - Pop a case in and out
  - USB strain relief
  - Use M2-M4 (#2-#6) screws or zip tie
  - Removable heavy-duty output strain relief shelf
  - Stackable


USB access Open Snap-out Replaceable cover


All cases feature:

  • Carbon fiber black, with logo inlay
  • Translucent status LED window
  • Raised button
  • USB power access
  • Output pins labels
  • Optional strain relief shelf (built-in or via mounting cradle) secures your LED wires in place
  • Access to pins and solder pads (cut out with a hobby knife)
  • Mounting options: Can accommodate screws, zip ties, or adhesive velcro (built-in or via mounting cradle)

Want to remix any of these or print one yourself? We've shared the .stl, .3mf, .step, and .f3d (Fusion 360 model) files on our GitHub.
