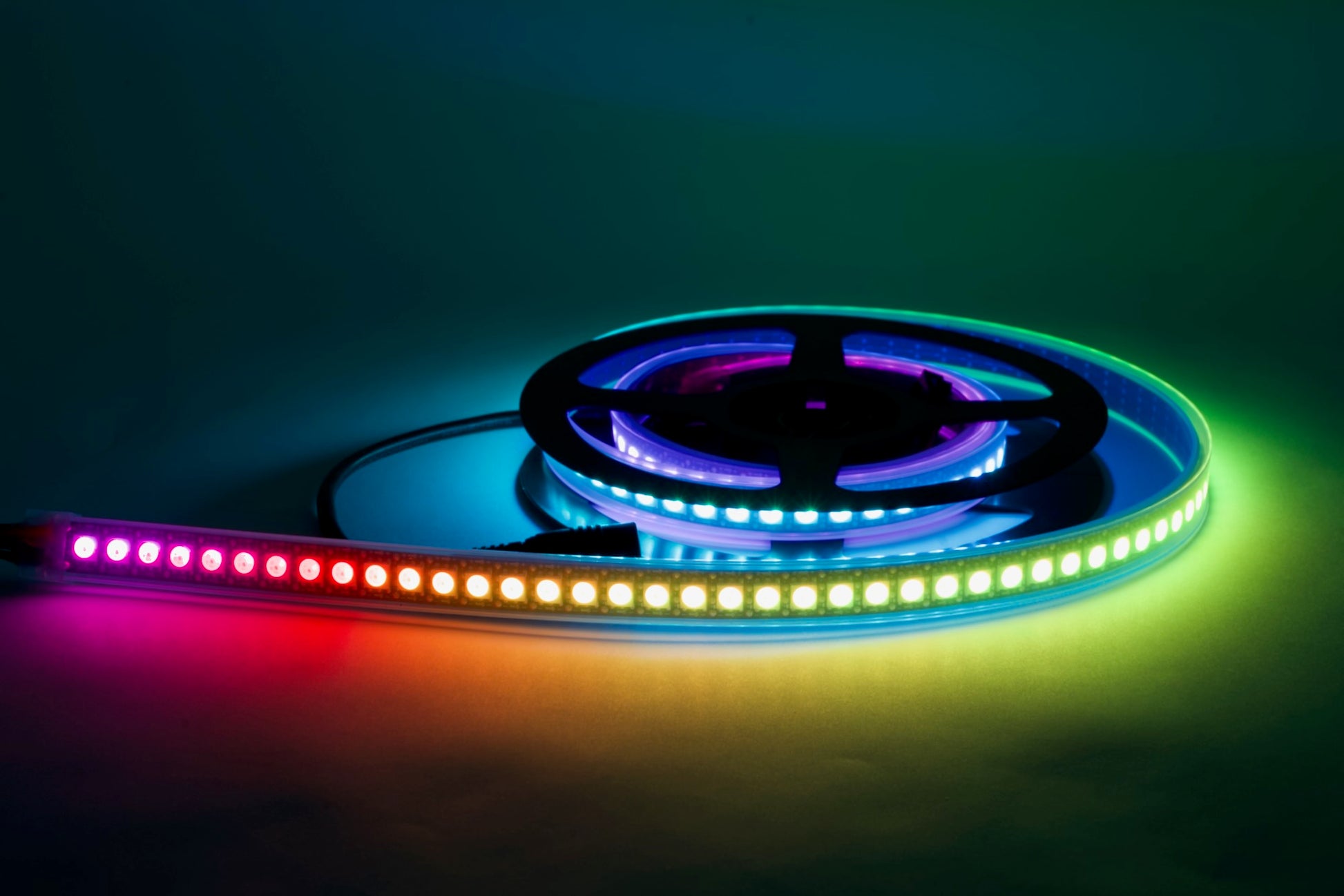

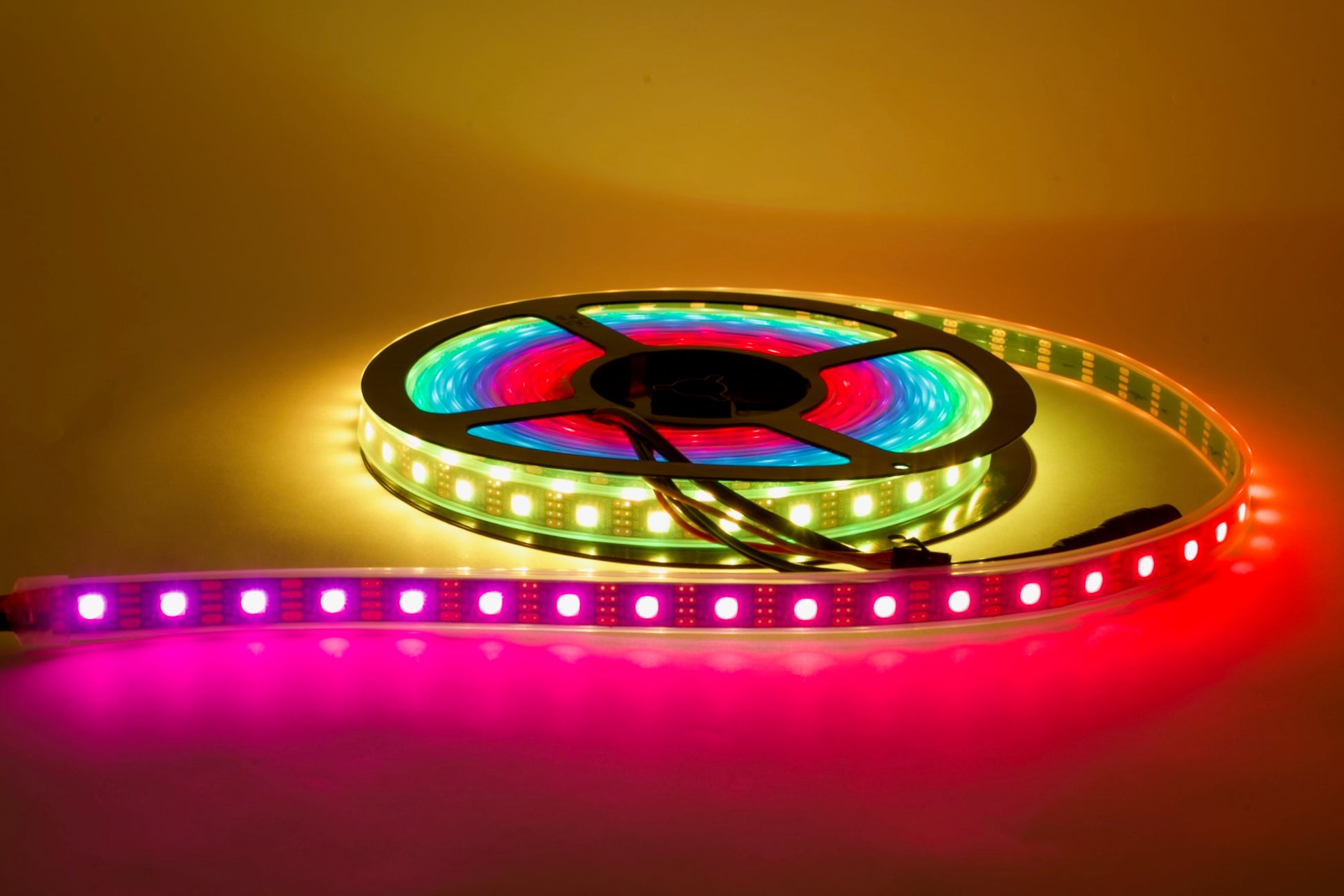

HDR Addressable LED strip - SK9822 (APA102 Compatible)

$47.00 USD
$47.00 USD

Why choose these pixels?

These are the most stunning, high-performance LEDs made today. They are brighter and faster than NeoPixels (WS281x) and flicker-free with HDR capabilities.

What is it?

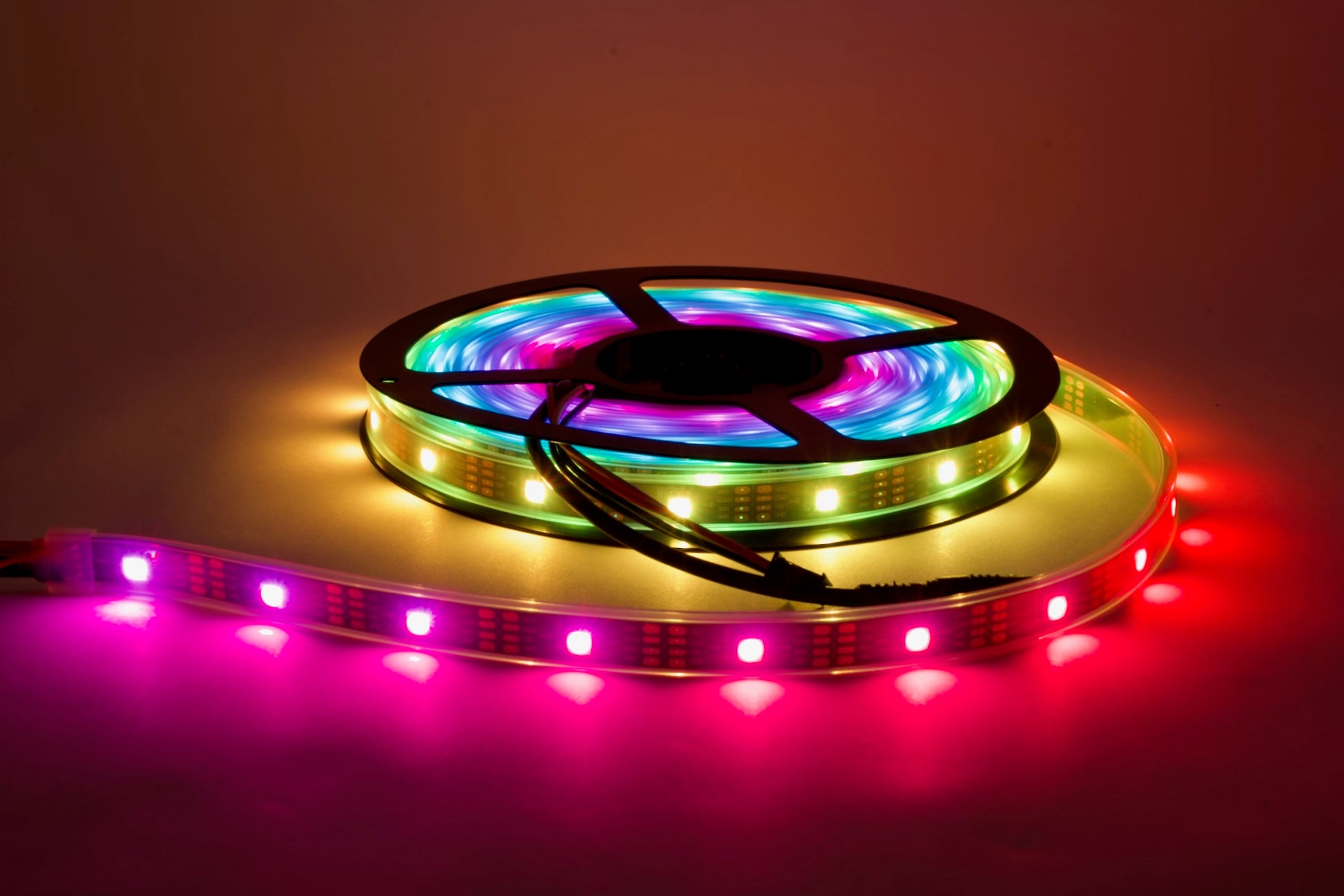

These are flexible RGB LED strips using the SK9822 chipset with HDR capabilities. They are powered by 5V and driven by a clock and data line. These are compatible with APA102s, which are also known/sold as DotStar.

Connectors for input, output, and a 2.1mm x 5.5mm power jack are installed.

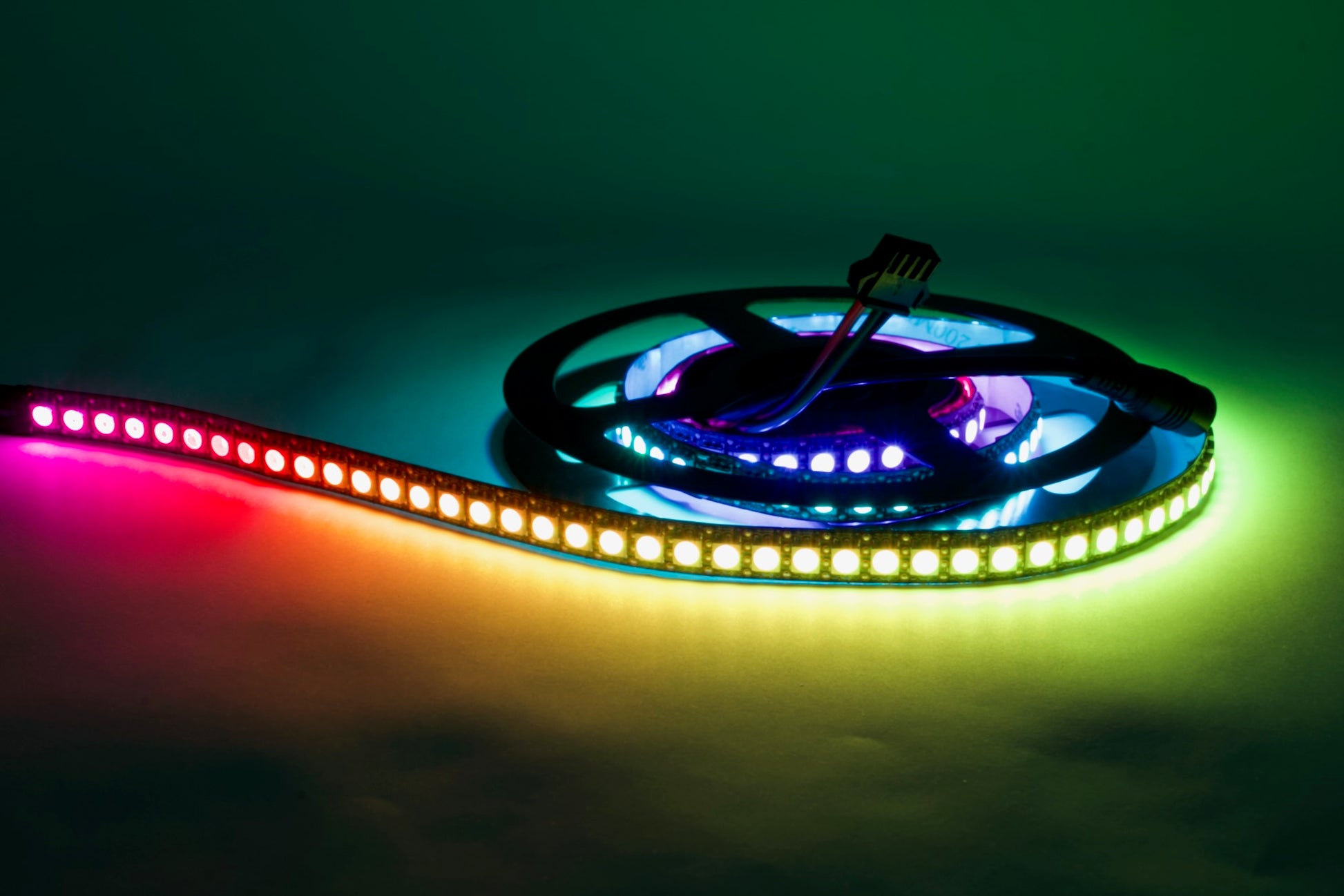

Available in pixel densities of 30, 60, or 144 pixels per meter.

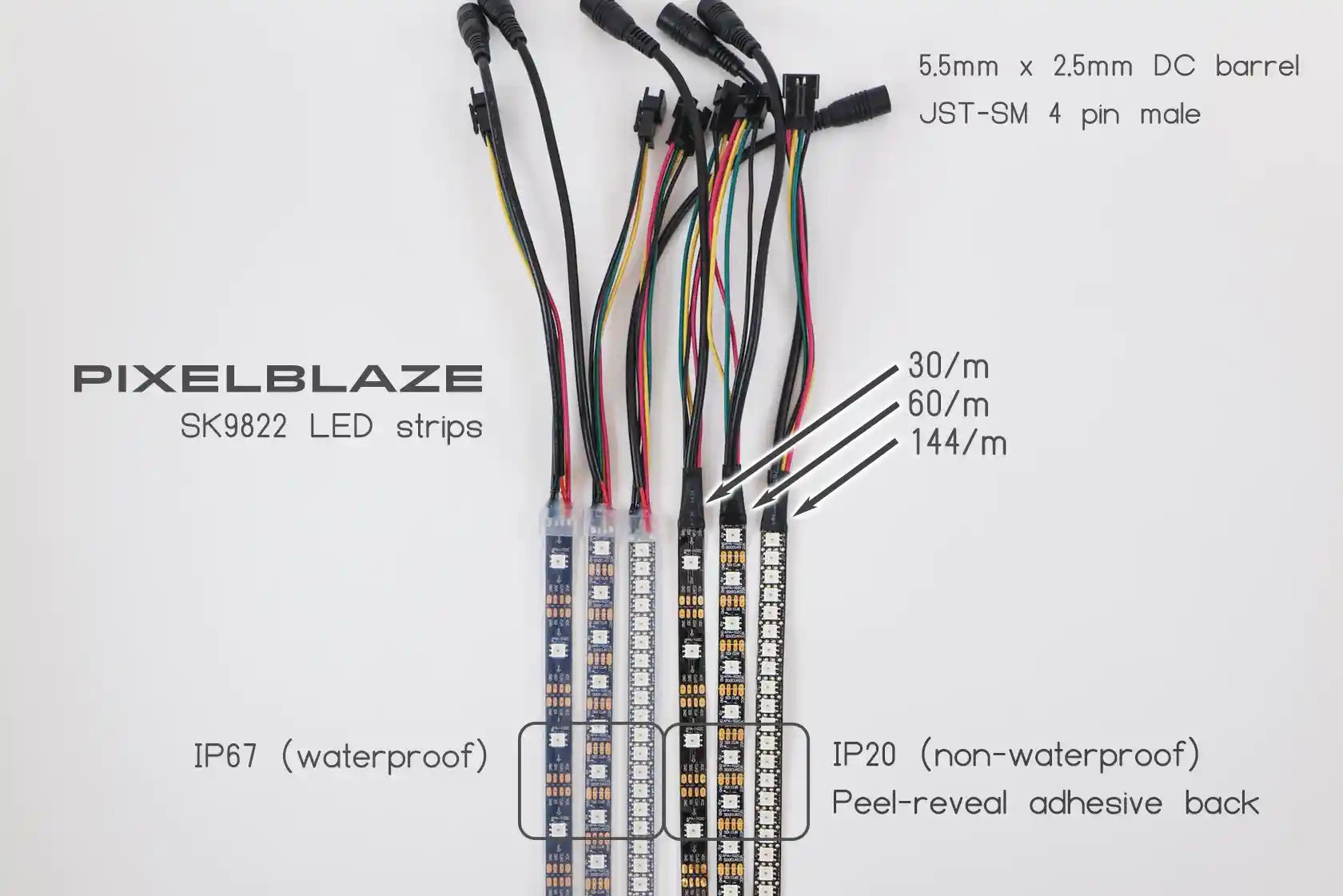

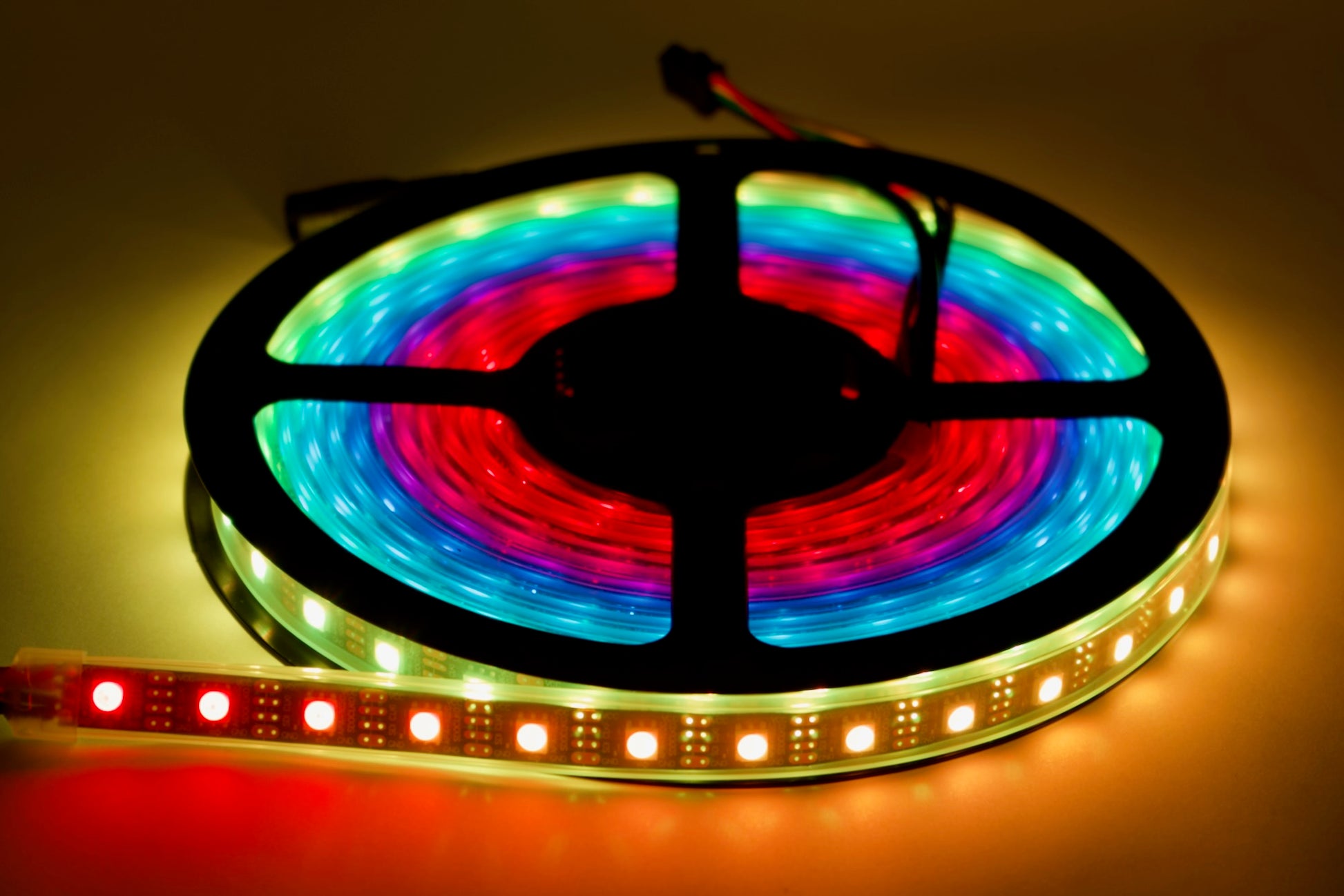

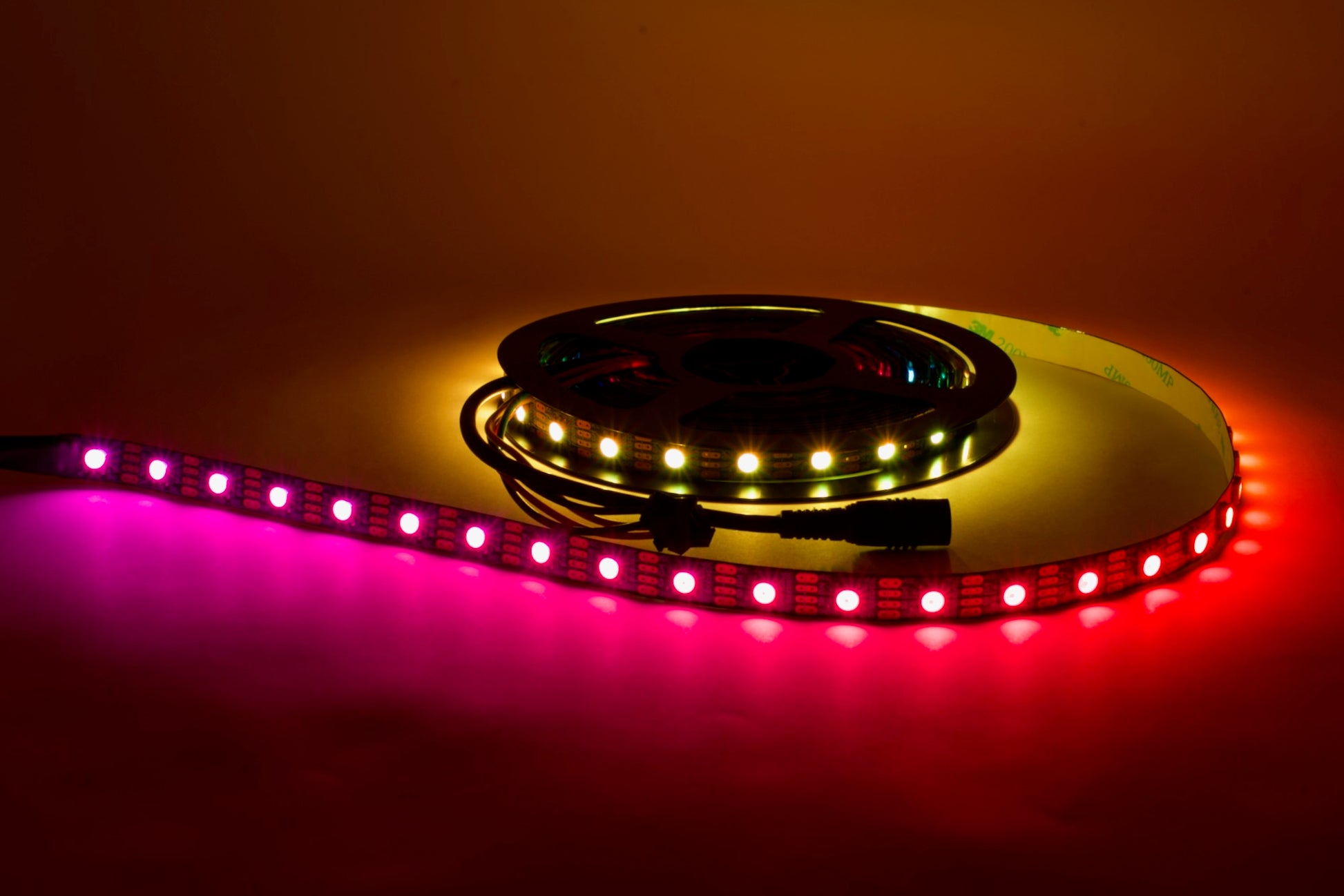

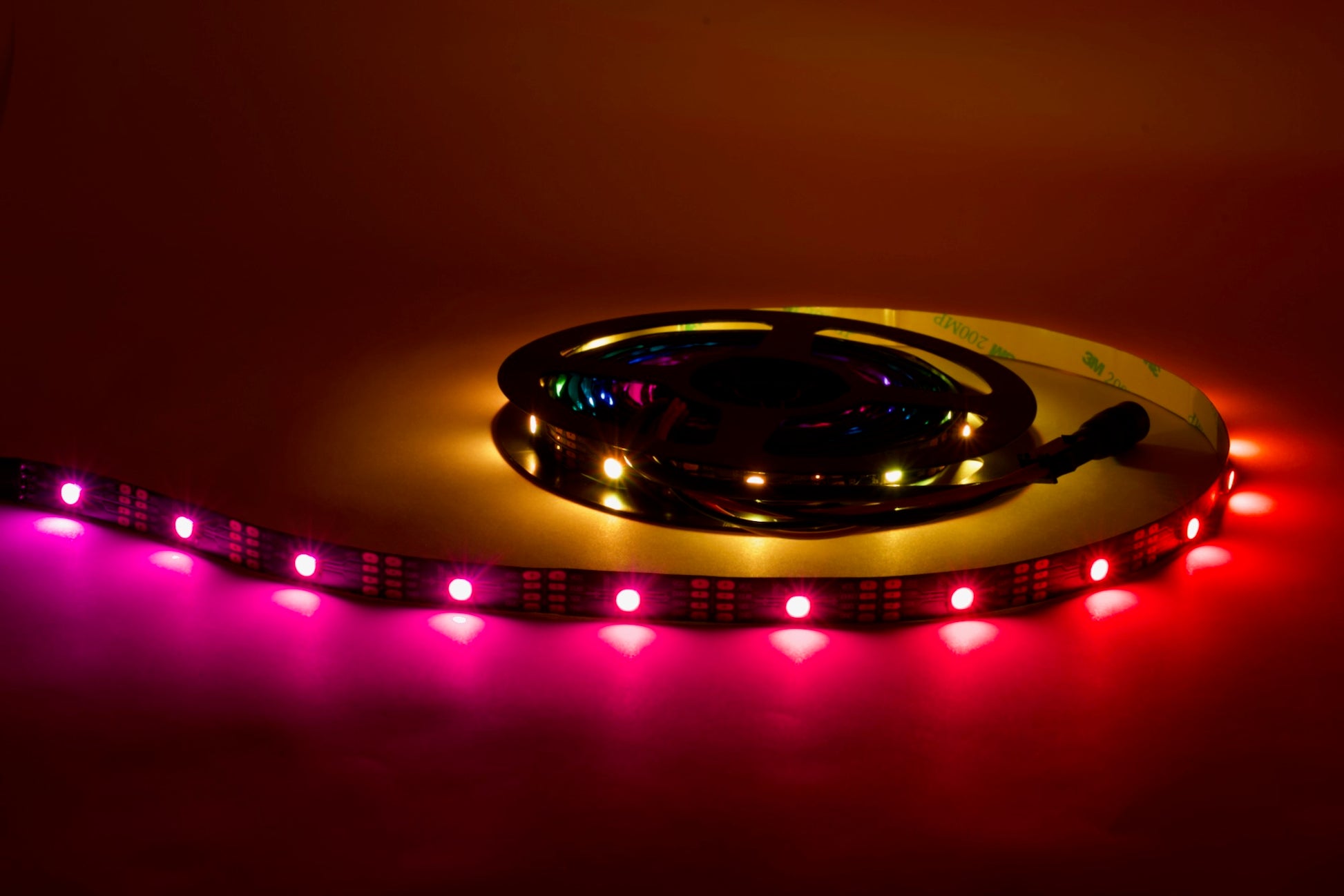

These LED strips come either with an adhesive tape back (IP20), or sealed in waterproof flexible silicone tubes to protect against the elements (IP67). They can be easily cut to any length, and have solder tabs between every LED.

What makes these LEDs special?

Pixelblaze is the only commercially available pixel controller that will maximize the per-pixel HDR out of these amazing pixels due to its 32-bit pipeline.

These are state-of-the-art and provide rock-solid updates, faster refresh cycles, and the possibility of a dynamic range well beyond the usual 0-255. They have 24-bit RGB color (8 bits per channel) with an additional 5 bits of brightness control for an equivalent of 13 bits of brightness control. They can be used in very low-light applications without losing color-mixing capabilities, and transitions to black are extremely smooth.

The SK9822 is a clone of the APA102C LED, but improves on the design and can provide the same dynamic range without introducing flicker. They’re also superior to WS281x and APA102s for Persistence-of-Vision (POV) effects due to their speed and some implementation details around PWM and colors.

Why buy from us?

  • Arrives as fast as Amazon for most US-based customers
  • No Chinese import duties
  • Thorough, verified spec sheet
  • Guaranteed best Pixelblaze compatibility
  • World-class tech support
  • Supports a small independent business

Notes on this batch

  1. The DC barrel connector has a 2.5mm pin, whereas it formerly had a 2.1mm pin. Some power supply connectors have a 2-sided inner mating conductor that's compatible with either size.
  2. Manufacturers vary greatly on the order of the pins within the JST-SM. Please confirm visually and with a multimeter before connecting power or a Pixelbaze.

Specs

Voltage 5 V
No redshift above 3.7 V
Cutout/flicker <2.3 V
Density 30 pixels/m (9.2/ft, 33.4mm pitch)
60 pixels/m (18.3/ft, 16.7mm pitch)
144 pixels/m (43.9/ft, 6.9mm pitch)
Brightness
per-pixel,
white 		10.0 - 52,500 lux @ 1"
(.58 mlm - ~6 lumens)
Current
at full white 		53 mA/pixel
5 Meter 30/m = 8 A (1.6 A/m, .50 A/ft)
5 Meter 60/m = 15.9 A (3.2 A/m, 1.0 A/ft) (must inject)
1 Meter 144/m = 7.6 A
Power
at full white 		.26 W/pixel
5 Meter 30/m = 40 W
5 Meter 60/m = 80 W (16 W/m, 4.8 W/ft) (must inject)
1 Meter 144/m = 38 W
Power vs color White draws full current; single red/green/blue draws ⅓

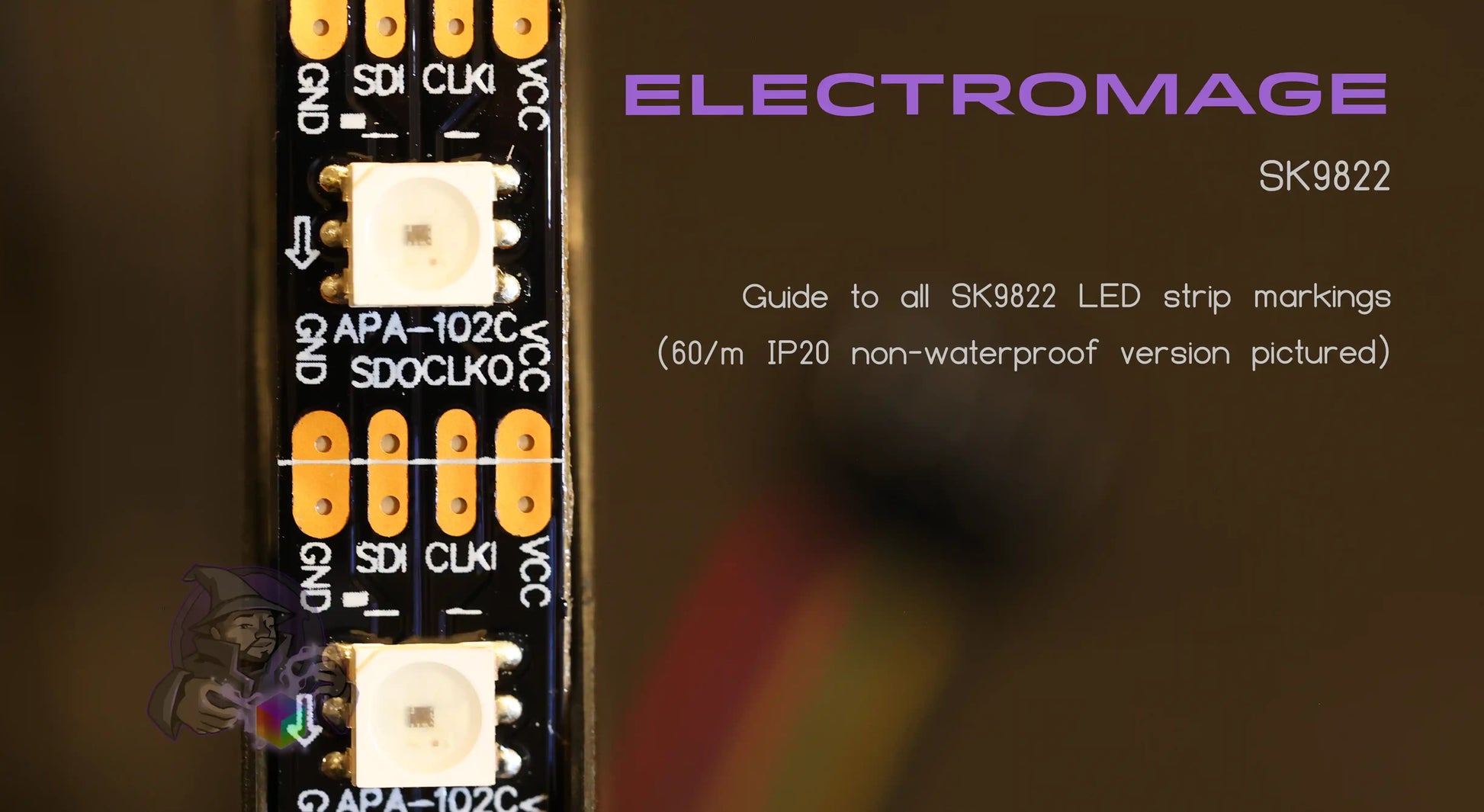

Pad order (label) Ground (GND, black), clock (CLKI, yellow), data (SDI, green), +5 Volts (VCC, red)
Connectors & wiring JST-SM 4 position locking  (3A max)
NOTE: Carefully check your wire colors/order
DC Barrel jack (5.5mm OD / 2.5mm pin)
Environmental IP20: Non-waterproof
IP67: waterproof (removable silicone sleeve, no gel filler)
Strip color Black
Size SMD5050 (5mm x 5mm) chips
10mm wide strip
IP20: 2.1mm height
IP67 sleeve: 4mm height x 12mm width; allow 6mm (h) x 16mm (w) for cap
Color order BGR
Wavelengths R: 625nm, G: 520nm, B: 465nm
PWM 4.6 KHz, excellent for filming and PoV
Max Speed
before flickering,
full white with power injection 		Depends on # of pixels and length:
1 m (144 pixels): 20 MHz
5 m (150 pixels): 12 MHz
5 m (300 pixels): 12 MHz
Real-world max transmission on Pixelblaze: 270K pixels/s, IE pattern rendering will limit your max FPS before the data transmission speed will.
Manufacturer's datasheet SK9822A (pdf) from Normand ↗
In case of conflict, we suggest that you use our measured values
